Home Products Fiber laser cutting machine fiber laser cutting machine of exchange

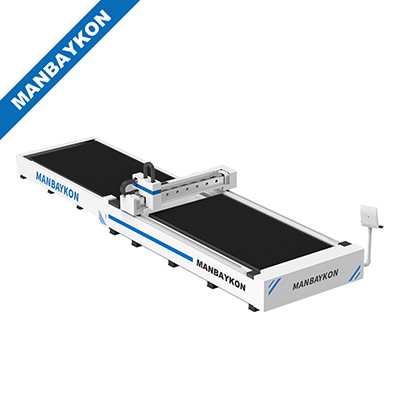

fiber laser cutting machine of exchange table

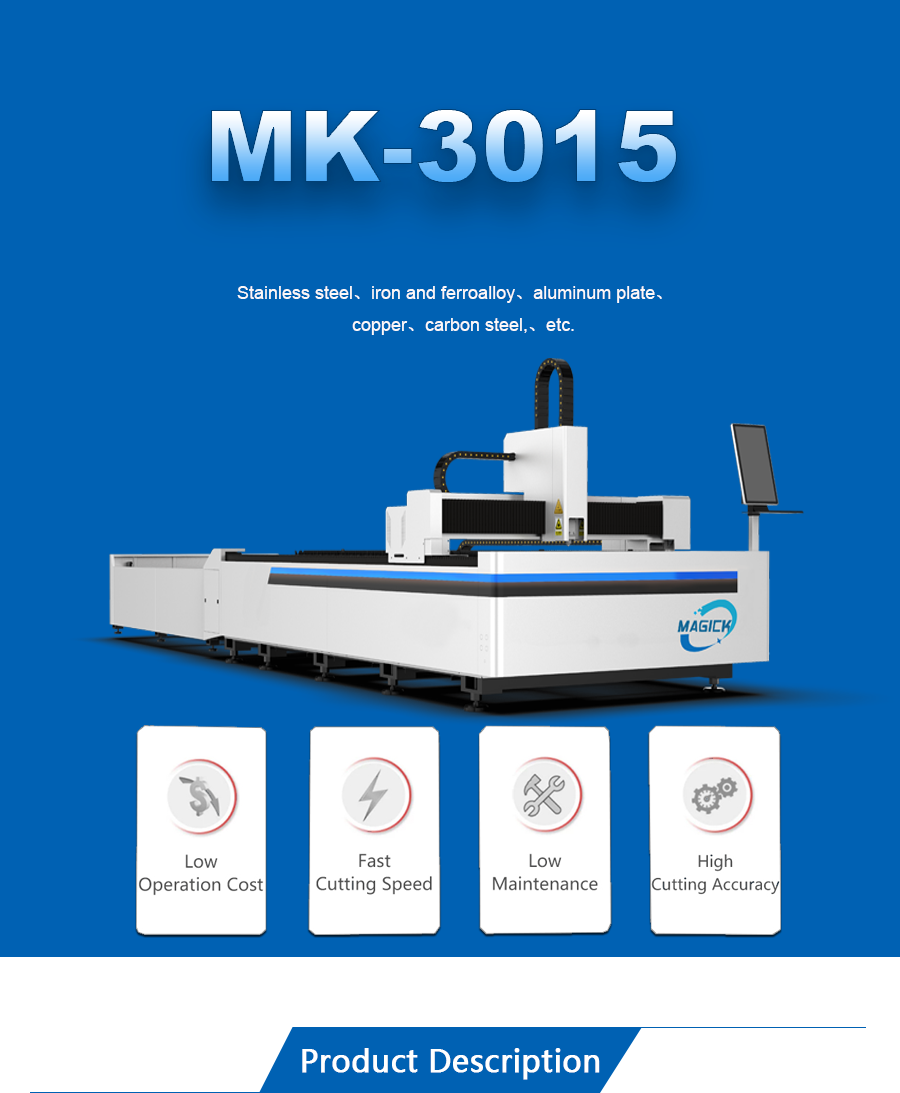

  • Product Item:MK-3015
  • fiber laser cutting machine
    Inquiry Send Email

    Description


    Basic introduction of fiber laser metal cutting machine
    This machine adopting high quality fiber laser and high precision WIRON square rail drivre by helical gear.Controlled by advanced automatiic numerical system.This high technology machine is a combination of laser cutting and automatic CNC machine. Such perfect combination guarantee its high speed,precision,efficient and low cost .So it is a preferred cutting machine for batch processing of metal material.


    1 Machine Name fiber laser cutting machine for metal plate cutting
    2 Model MK-1530
    3 Laser machine cutting area 3000x1500mm
    4 Fiber Laser Power 500/800/1000/1500/2000/3000w
    5 Laser wave length 1064nm
    6 Transmission system Gear + rails (we have standard brand,
    we can also produce as your requirements)
    7 X.Y axis location accuracy ±0.01mm
    8 X.Y axis repeat location accuracy ±0.01mm
    9 X.Y axis max moving speed 60m/min
    10 Max cutting speed 1--60m/min (it will according to metal material and laser power and machine configuration)
    11 Cutting thickness Detailed in the following cutting thickness
    12 Application Material Metal sheet Iron/CS/SS/Aluminum/Copper and all kinds metal
    13 Advantages Lower Price, more suitable for 1000w/1500w
    14 Gross weight 3020KG


    It is installed in the fiber cutting machine's computer box and acts as the center of cyput control system
    Fiber laser generator with great and stable performance to have lifespan ove100,000hours. Raycus/Max for choice.(The USA IPGLaser  source is optional).

    Cast aluminum crossbeam Integral steel mold pressure casting, light,flexible and efficient;High flexibility is beneficial to high-speedcutting of various graphics based on highaccuracy.

    .With a variety of optical interfaces,can be adapted with a variety of fiber lasers;.Collimation lens, focusing lens and nozzle are all have cooling structures;

    Long use lifetime and accurate route movingYaskawa Servo Moto Our fiber laser machine adopts the Shimpo Servo Reducer fromJapan with low noise when the machine is processing the

    metalmaterials, After many refinements,it has small size in installationbut high precision function.

    Exchanging Platform (Optional) It adopts an up anddown exchange platform, and the converter is resp-onsible for controlling the exchanging motor.The machine is able to finish the platform exchangingwithin 15s.



    Q1.how to get the most suitable machine and best price
    Please tell the material you want to working on?How to working on it ? Engraving ? Cutting ? Or other ?What’s the MAX size of these material ?( length ? Width ? Thickness ?)Then we will supply you 2-3 solution for advice.


    Q2.What is the payment?
    The payment is 30% or 50% T/T or Alibaba trade assurance in advance,the balance prior to the shipment.


    Q3.What is the producing time after order?
    The production time is about 10-20 days depend on the exact machine and the quantity.


    Q4.If we don't know how to use the machine,can you teach us?
    Yes,we will ,if you come to China,we will offer you free training until you can use machine freely.And if you are busy ,we will have the special engineer to your country,but you need to bear some fee,like tickets and hotel and meal.


    Q5.How about your after-sales service?
    We offer you 24 hours service phone,skype or what’sapp, our engineer also can go to door install or training.


    Q6. Quality Control:
    The whole production procedure will be under regular inspection and strict quality control. The complete machine will be tested to make sure they can work very well before being out of factory.The testing video and pictures will be sent to you before the delivery.
