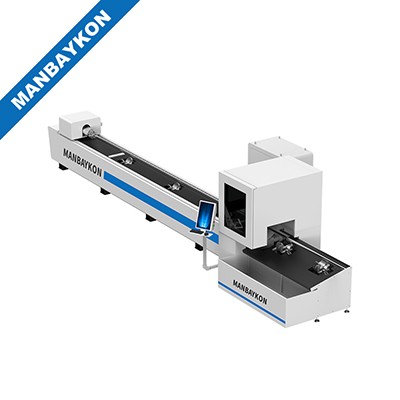

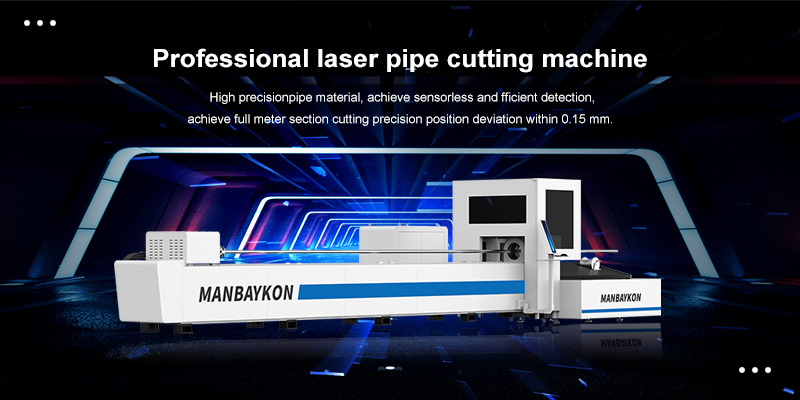

Description
Machine Feature
1. High rigidity heavy chassis, reducing the vibration generated during the high-speed cutting process.
2. Processing circular tube, square tube, rectangular tube.
3. The laser cutting head does not come into contact with the surface of the material and does not scratch the workpiece.
4. The slit is the narrowest, the heat affected zone is the smallest, the local deformation of the workpiece is very small, and there is no mechanical deformation.
5. It has good processing flexibility, can process any pattern, and can cut pipes and other profiles.
6. Non-deformable cutting can be performed on materials of any hardness such as steel plates, stainless steel, aluminum alloy plates, and hard alloys.
Machine Parameters
|
Model |
HN-6020 |
||
|
Working area |
6000mm*200mm |
Reposition accuracy |
±0.2-0.3mm/1000mm |
|
Laser type |
Fiber laser generator |
Graphic format supported |
IGS;SAT;JHB |
|
Laser power |
1000W-3000w |
Working environment |
Temp:0-40℃,humidity: ≤80%, No condensation |
|
Transmission system |
Import diver and motor |
Total power |
(Around) 20KW |
|
Lubrication system |
Full-automatic |
Package dimension |
9300*2100*2500mm +3500*2100*1500mm |
|
Maximum speed |
80m/min |
Gross weight |
3500KG |
|
Maximum accelerated speed |
1.0G |
Position accuracy |
±0.2-0.3mm/1000mm |
|
Max cutting diameter |
200mm |
Min cutting diameter |
16mm |
|
Max cutting length |
6000mm |
Min cutting length |
200mm |
Cutting Samples
Cutting Material
Cutting a wide variety of metal plates, tubes, mainly applicable to stainless steel, carbon steel, manganese steel, galvanized sheet, a variety of alloy plates, rare metal and other materials cutting.
Application
Industry of kitchen ware, lamps and lanterns, panel beating, metal cabinets, auto parts, refrigerators, air condition, elevators, hotel metal supplies processing, etc
