Description
The most effective-cost fiber laser cutting machine , we manufacturer all kinds of fiber cutting machine Power brand IPG, MAX or Raycus are all available , you can also choose different area of table , open type single table or double auto exchangeable table ,with or without protective cover ,we can customize as you request .

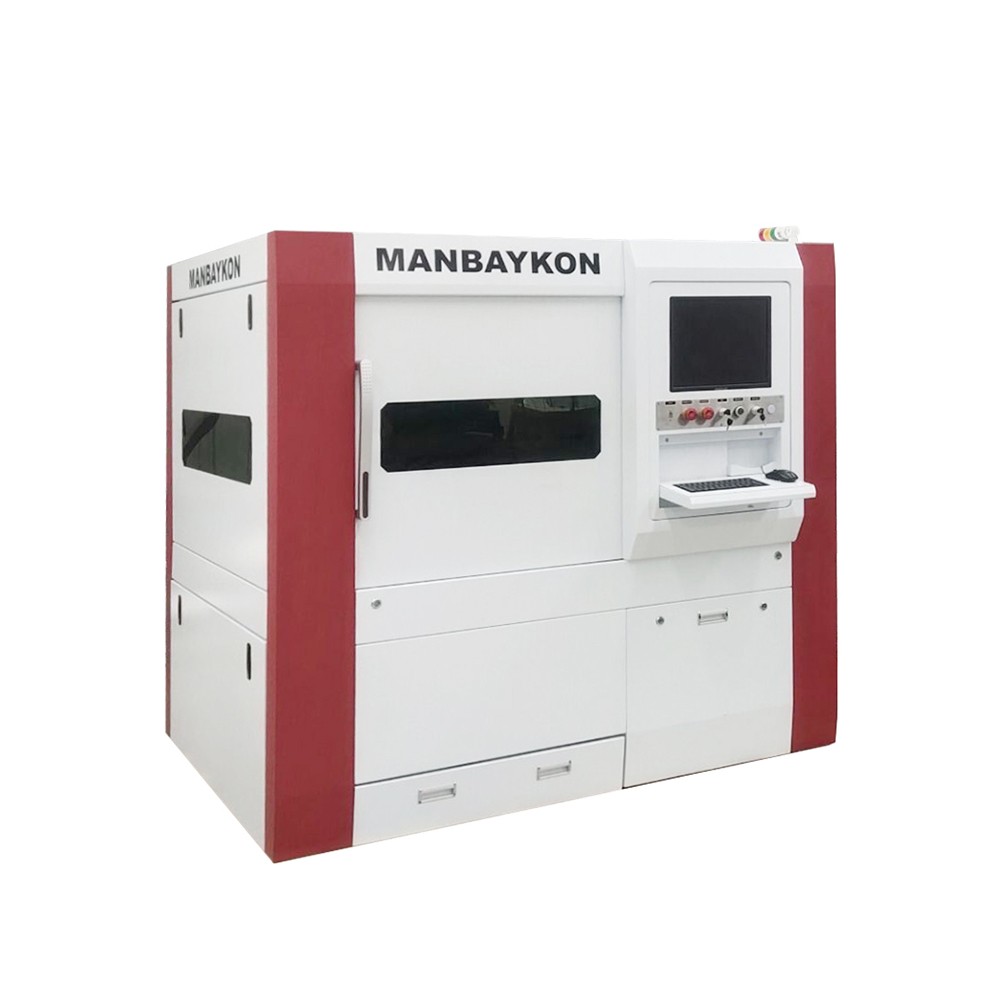

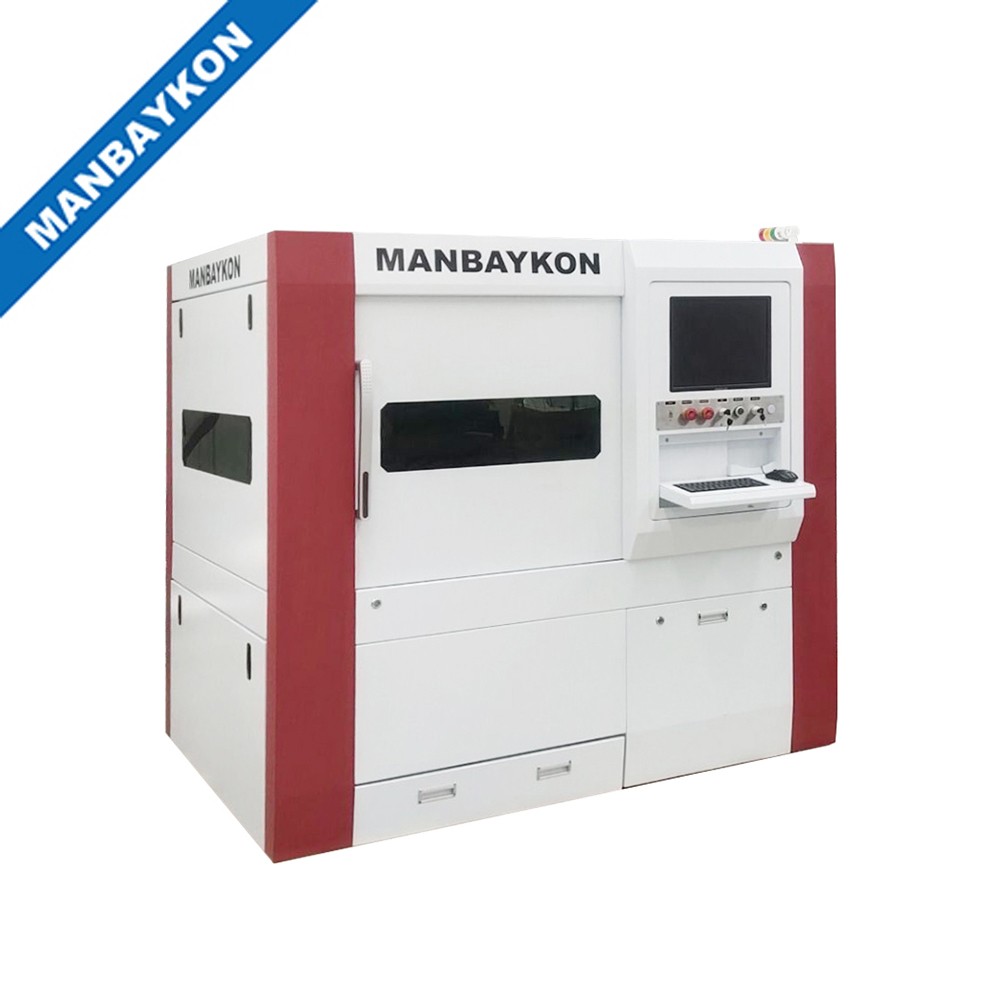

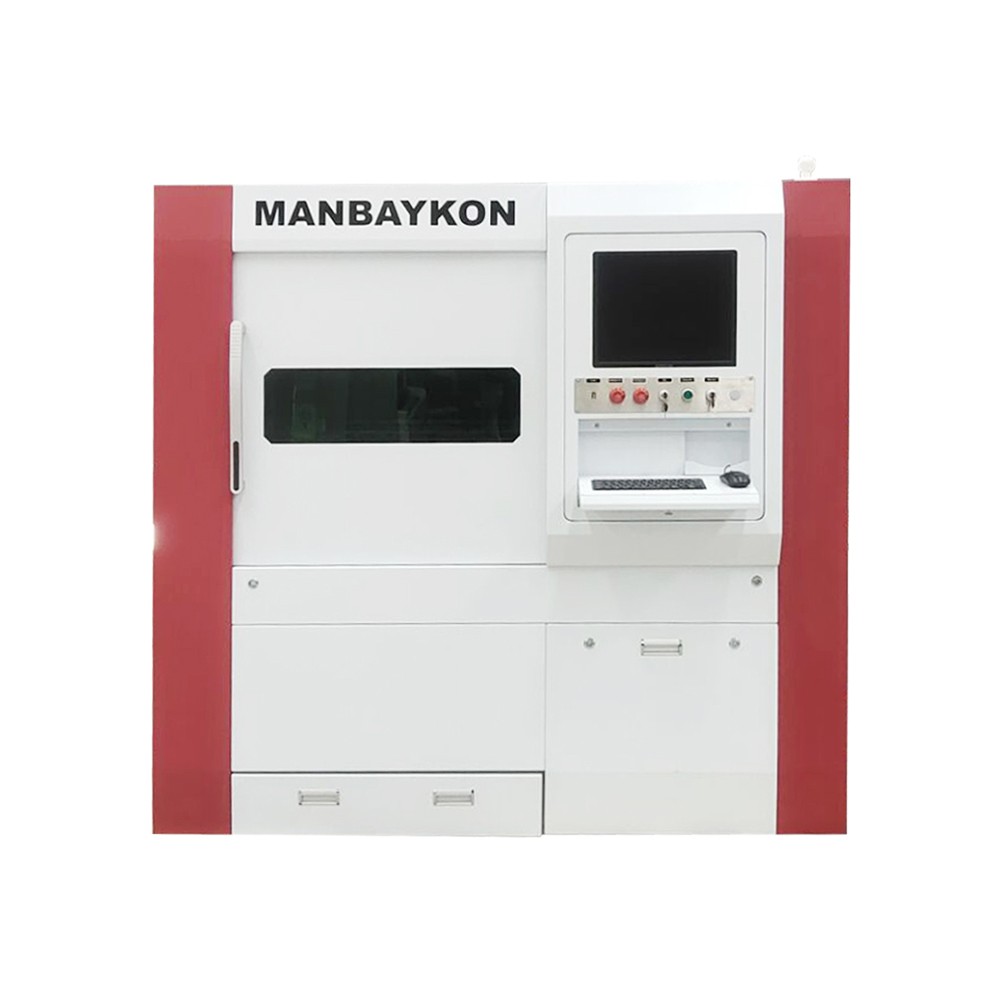

The MK-6060 is our economical full sheet fiber laser, specifically designed for high precision metal cutting applications and perfect for small to medium businesses looking to cut thin sheet metal.
··· MACHINE PAREMETERS ···
|
Product Name |
MK-6060 metal fiber laser cutting machine |
|
laser Medium |
Semiconductor pump continuous mixing glass fiber |
|
Cutting area |
600mm*600mm |
|
Cutting Speed |
150m/min |
|
Cooling mode |
water cooling with high precision constant temperature water chiller |
|
Laser power |
1000W /1500W/2000W/3000W/6000W |
|
Fiber Laser Source |
IPG/Raycus/MAX |
|
Laser Head |
RAYTOOLS |
|
Software |
Cypcut |
··· MACHINE DETAILS ···
It is installed in the fiber cutting machine's computer box and acts as the center of cyput control system
Fiber laser generator with great and stable performance to have lifespan ove100,000hours. Raycus/Max for choice.(The USA IPGLaser source is optional).
Cast aluminum crossbeam Integral steel mold pressure casting, light, flexible and efficient; High flexibility is beneficial to high-speed cutting of various graphics based on high accuracy.
With a variety of optical interfaces, can be adapted with a variety of fiber lasers，Collimation lens, focusing lens and nozzle are all have cooling structures;
Long use lifetime and accurate route moving Yaskawa Servo Moto Our fiber laser machine adopts the Shimpo Servo Reducer from Japan with low noise when the machine is processing the metal materials, After many refinements, it has small size in installation but high precision function.
Exchanging Platform (Optional) It adopts an up and down exchange platform, and the converter is resp-on sible for controlling the exchanging motor. The machine is able to finish the platform exchanging with in 15s.
··· Materials and Applications ···
The MK6060E metal sheet laser cutting machine is used to cut mild steel, stainless steel, aluminum alloy, brass and other steel; Application in automobile industry, sheet metal industry, furniture industry, advertising industry, etc.
··· CUTTING SAMPLE ···
|
|
It is installed in the fiber cutting machine's computer box and acts as the center of cyput control system |
|
|
Fiber laser generator with great and stable performance to have lifespan ove100,000hours. Raycus/Max for choice.(The USA IPGLaser source is optional). |
|
|
|
|
|
With a variety of optical interfaces, can be adapted with a variety of fiber lasers，Collimation lens, focusing lens and nozzle are all have cooling structures; |
|
|
|
|
|
|
··· Materials and Applications ···
