UV laser making machine

  • Product Item:MK-3W
  • 3W uv laser marking machine
    Inquiry Send Email

    Description

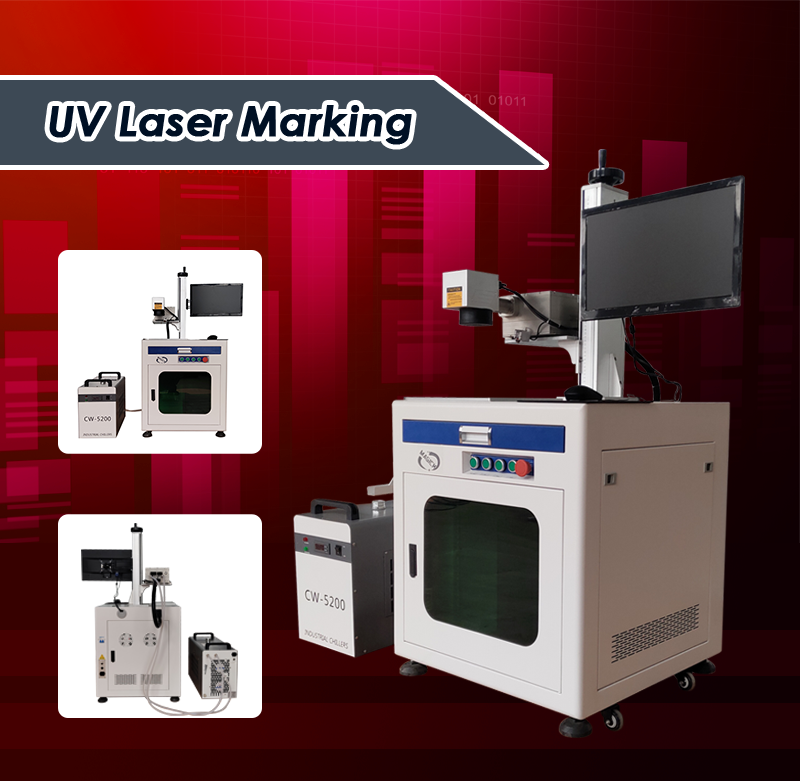

    UV laser marking machine - Introduction

    Ultraviolet laser marking machine belongs to a series of laser processing technology. It uses 355nm UV laser as the light source. The machine uses third-order intracavity frequency doubling technology to compare with infrared laser (pulsed fiber laser), 355 ultraviolet focusing spot. Small, can greatly reduce the mechanical deformation of the material and has little influence on the processing heat, because it is mainly used for superfine marking, engraving, cutting.
    It is especially suitable for applications such as marking of food and pharmaceutical packaging materials, micropores, high-speed division of glass materials, and complex graphic cutting of wafer wafers.

    Product name UV Laser marking machine
    Machine power 3w/5w/10w(Optional)
    Laser source brand JPT/Inngu/Gain(Optional)
    Machine application Metal and nonmetal all materials
    Pulse Duration <15ns@40kHz
    Pulse Repetition Rate Range 20kHz-150kHz
    Spatial Mode TEM00
    Beam Quality M² ≤ 1.2
    Beam circularity >90%
    Beam Full Divergence Angle ≤2mard
    Beam Diameter Non- expanding: 0.7±0.1mm
    Polarization Ratio > 100:1
    Polarization Orientation Horizontal
    Average Power Stability RMS ≤ 3% @ 24hs
    Pulse to Pulse Energy Stability RMS ≤ 3% @40kHz
    Marking speed 8000mm/s

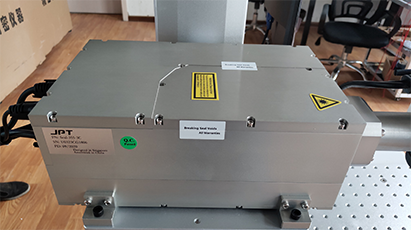

    ORIGINAL RAYCUS/JPT /IPG

    OPTIONALVITH HICH BEAM QUALITY, THE ULTRA -SMALLTOCUSING SPOT OF 355NM ULTRAVIOLET UGHTAND PROCESSING HEAT AFTECTED ZONE


    High speed scanning galvanometer system
    The whole system adopts new technology,new technology ,stable light beam,high efficiency and no distortion.


    Precision field mirror stable performance
    Good light sense,good beam quality,improve the ability of edge beam to enter the detector


    SOFTWARE CONTROLCARD: FLYING TYPE,BUILT-IN ONEBU TON START SYSTEM,
    TOUCH SCREEN OPERATION SYSTEM, WITH SIMPLE, USER-FRIENDLYAND NICE-LOOKING INTERFACE,ANEXTERNALUSB DEVICE CANTRANSMITDATA EFTECTIVELYANDRAPIDLY.

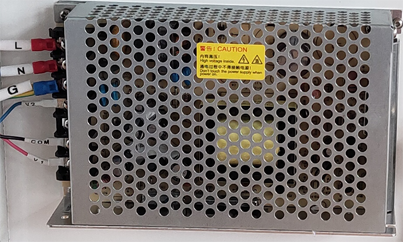

    LASERPOWERSOURCEFORLASERSOURC

    EANDGA VANOMETER SCANNINGHEADWITHSTABLEPERFORMANCE,PROFESSIONAL
    TECHNOLOGYANDLONGLIFETIME.


    1. Powerful editing function.

    2. Friendly interface.

    3. Easy to use.

    4. Support Microsoft Windows XP, VISTA, Win7, Win10 system. E 0

    5. Support ai, dxf, dst,plt, bmp,jpg, gif, tga, png,tif and other file formats.

    6. Support for TrueType fonts, single line fonts (JSF), SHX fonts, dotmatrix fonts (DMF),1D bar codes and 2D bar codes. Flexible variabletext processing, changing text in real time during processing, can d-irectly read and write text files, SQL databases and Excel file.
