Home Products Fiber laser cutting machine laser cutting machine

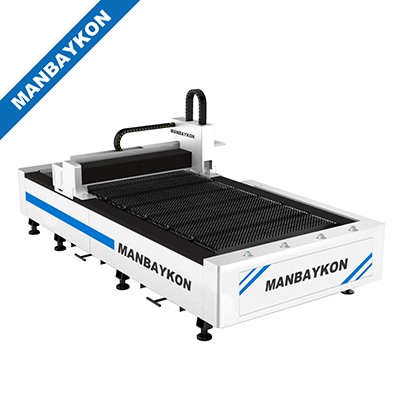

laser cutting machine

  • Product Item:MK-3015S
  • Inquiry Send Email

    Description

    The most effective-cost fiber laser cutting machine , we manufacturer all kinds of fiber cutting machine Power brand IPG, MAX or Raycus are all available , you can also choose different area of table , open type single table or double auto exchangeable table ,with or without protective cover ,we can customize as you request .

    The MK-3015C is our economical full sheet fiber laser, specifically designed for high precision metal cutting applications and perfect for small to medium businesses looking to cut thin sheet metal.



    ···   MACHINE PAREMETERS   ···

    Product Name

    MK-3015 metal fiber laser cutting machine

    laser Medium

    Semiconductor pump continuous mixing glass fiber

    Cutting area

    3000mm*1500mm

    Cutting Speed

    150m/min

    Cooling mode

    water cooling with high precision constant temperature water chiller

    Laser power

    1000W /1500W/2000W/3000W/6000W

    Fiber Laser Source

    IPG/Raycus/MAX

    Laser Head

    RAYTOOLS

    Software

    Cypcut

    ··· MACHINE DETAILS   ···


    It is installed in the fiber cutting machine's computer box and acts as the center of cyput control system
    Fiber laser generator with great and stable performance to have lifespan ove100,000hours. Raycus/Max for choice.(The USA IPGLaser  source is optional).

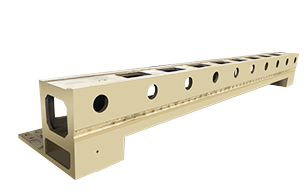

    Cast aluminum crossbeam Integral steel mold pressure casting, light, flexible and efficient; High flexibility is beneficial to high-speed cutting of various graphics based on high accuracy.

    With a variety of optical interfaces, can be adapted with a variety of fiber lasers,Collimation lens, focusing lens and nozzle are all have cooling structures;

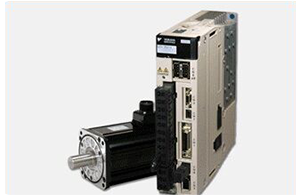

    Long use lifetime and accurate route moving Yaskawa Servo Moto Our fiber laser machine adopts the Shimpo Servo Reducer from Japan with low noise when the machine is processing the metal materials, After many refinements, it has small size in installation but high precision function.

    Exchanging Platform (Optional) It adopts an up and down exchange platform, and the converter is resp-on sible for controlling the exchanging motor. The machine is able to finish the platform exchanging with in 15s.


    1
    Model
    MK3015C
    2
    Cutting working area
    3000x1500mm
    3
    Laser Generator
    Raycus / IPG /MAX
    4
    Transmission system
    Gear + rails
    5
    Fiber Laser Power
    1000W
    6
    X.Y axis location accuracy
    ±0.01mm
    7
    X.Y axis repeat location accuracy
    ±0.01mm
    8
    X.Y axis max moving speed
    120m/min
    9
    Laser wave length
    1064nm
    10
    Machine color
    Support custom made
    11
    Gross weight
    3500KG
    12
    Machine Warranty
    3 years

    ··· Materials and Applications ···

    The MK3015C metal sheet laser cutting machine is used to cut mild steel, stainless steel, aluminum alloy, brass and other steel; Application in automobile industry, sheet metal industry, furniture industry, advertising industry, etc.


    ···   CUTTING SAMPLE   ···
